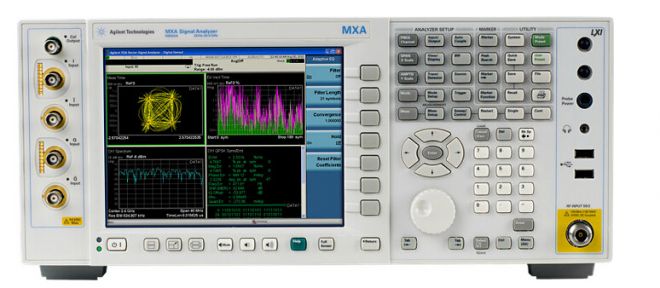

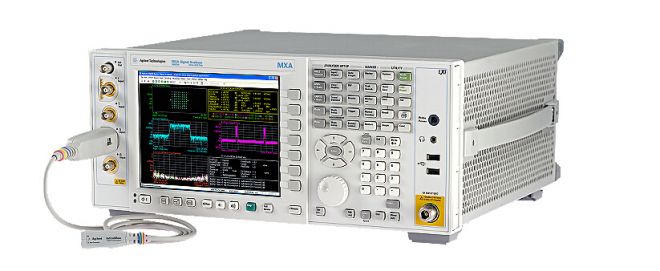

儀器名稱: Agilent N9020A MXA Signal Analyzer, 10 Hz to 26.5 GHz---手機18912657535 儀器型號: N9020A MXA Signal Analyzer 儀器品牌: Agilent 儀器指標: 10 Hz to 26.5 GHz
Functionality - See the latest enhancements
- 10 Hz to 3.6, 8.4, 13.6, or 26.5 GHz; extend frequency to 110 GHz with Agilent's smart mixers and up to 1.1 THz with other vendors' mixers
- 25 MHz (standard); 40, 85, 125 or 160 MHz analysis bandwidth
- Fast sweep capability ships standard on new instruments equipped with Option B40, DP2, or MPB; fast power measurements available as Option FP2
- Real-time spectrum analyzer capabilities with 100% probability of intercept for signal duration as short as 3.57 μs
- ±0.23 dB absolute amplitude accuracy
- -114 dBc/Hz phase noise at 10 kHz offset; +20 dBm third order intercept (TOI)
- -166 dBm displayed average noise level (DANL) with preamplifier and get up to 9 dB further improvement with noise floor extension (Option NFE)
- -78 dB W-CDMA ACLR dynamic range (with noise correction on)
Measurement applications & software
- Supports >25 measurement applications, covering cellular communication, wireless connectivity, digital video and general purpose
- Advanced analysis of more than 75 signal formats, software runs inside the MXA with 89600 VSA software
- MATLAB data analysis software for general purpose data analysis, visualization, and measurement automation.
- Agilent's PowerSuite one-button power measurements included as standard

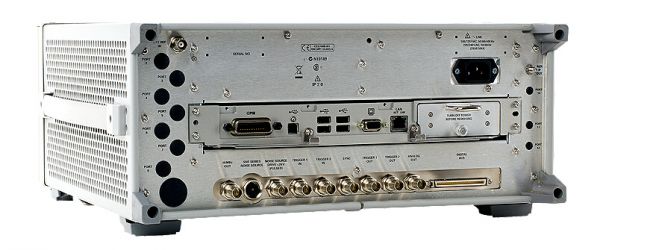

Automation & communication interface
- LXI compliant, SCPI and IVI-COM
- USB 2.0, 1000Base-T LAN, GPIB
- Programming remote language compatibility with PSA, 8566/68, and 856x
- Common X-Series user interface / Open Windows 7 operating system (standard)
- Migrate your existing MXA from Windows XP to Windows 7
Description
Accelerate in wireless with the N9020A MXA
The MXA is designed to accelerate the development of new wireless devices for quick delivery to manufacturing and the marketplace. It has the versatility to easily adapt to your evolving test requirements by addressing multiple formats, generations and devices.
Real-time spectrum analyzer capability can be added as an upgrade to new and exisiting MXAs to help you capture and understand the most elusive signals in an increasingly complex signal environment. Coupled with 160 MHz of wideband analysis bandwidth, the MXA allows you to make accurate analysis of next-generation wireless communications and connectivity signals.
The N9020A MXA signal analyzer is a member of the X-Series spectrum analyzers, which is an evolutionary approach to signal analysis that spans instrumentation, measurements and software. It gives you the flexibility to satisfy your business and technical requirements across multiple products and programs - now and in the future.
N9020A-0BW Hard Copy Assembly-Level Service Guide
N9020A-1CM Rack mount kit
N9020A-1CN Front handle kit
N9020A-1CP Rackmount and handle kit
N9020A-1CR Rack slide kit
N9020A-503 Frequency range, 10 Hz to 3.6 GHz
N9020A-508 Frequency range, 10 Hz to 8.4 GHz
N9020A-513 Frequency range, 10 Hz to 13.6 GHz
N9020A-526 Frequency range, 10 Hz to 26.5 GHz
N9020A-A6J ANSI Z540-1-1994 Calibration
N9020A-AB2 Hard Copy of X-Series Chinese Getting Started and Troubleshooting Guide
N9020A-AKT Getting Started Guide MXA Russian Localization
N9020A-AMG Calibration + Uncertainties + Guardbanding (Accredited)
N9020A-B1A Analysis bandwidth, 125 MHz
N9020A-B1X Analysis bandwidth, 160 MHz
N9020A-B25 Analysis Bandwidth, 25 MHz
N9020A-B40 Analysis bandwidth, 40 MHz
N9020A-B85 Analysis bandwidth, 85 MHz
N9020A-BAG Accessory Pouch
N9020A-BBA I/Q baseband inputs, analog
N9020A-CR3 Connector, Wideband IF output
N9020A-CRP Connector,programmable rear IF output
N9020A-DP2 Digital Processor, 2 GB Capture Memory
N9020A-DVR DVD-ROM/CD-R/RW Drive
N9020A-EA3 Electronic attenuator, 3.6 GHz
N9020A-EDP Enhanced display package
N9020A-EMC Basic EMC Functionality
N9020A-ESC External source control
N9020A-EXM External Mixing
N9020A-FP2 Fast Power, up to 40 MHz bandwidth
N9020A-HTC Hard Transit Case
N9020A-KB2 US 65 Key USB Keyboard
N9020A-KYB Keyboard, USB
N9020A-MLP Minimum Loss Pad, 50 to 75 ohm
N9020A-MPB Microwave preselector bypass
N9020A-NFE Noise floor extension
N9020A-P03 Preamplifier, 3.6 GHz
N9020A-P08 Preamplifier, 8.4 GHz
N9020A-P13 Preamplifier, 13.6 GHz
N9020A-P26 Preamplifier, 26.5 GHz
N9020A-PFR Precision frequency reference
N9020A-PRC Portable Configuration
N9020A-RT1 Real-time analysis up to 160 MHz BW, basic detection
N9020A-RT2 Real-time analysis up to 160 MHz BW, optimum detection
N9020A-RTR Real-time spectrum recorder and analyzer application example
N9020A-S40 Baseband bandwidth, 40 MHz/Channel
N9020A-SF2 Security features, prohibit saving results
N9020A-SSD Additional removable solid state drive
N9020A-UK6 Commercial calibration certificate with test data
N9020A-W7X Operating system, Windows Embedded Standard 7
N9020A-YAS Y-axis ouptut
1CM013A Rackmount Flange Kit 177.0mm H (4U) - Two Flange Brackets
N6141A EMI Measurement Application
N6141A-2FP EMI measurement application, fixed perpetual license
N6141A-2TP EMI measurement application, transportable perpetual license
N6149A IDEN/WIDEN/MotoTalk Measurement Application
N6149A-2FP IDEN, WIDEN, Moto Talk Measurement application, fixed perpetual license
N6149A-2TP IDEN/WIDEN/MotoTalk measurement application, transportable perpetual license
N6152A Digital Cable TV Measurement Application
N6152A-2FP DVB-C/J.83 Annex A/C measurement application, fixed perpetual license
N6152A-2TP DVB-C/J.83 Annex A/C measurement application, measurement application,
transportable perpetual license
N6152A-3FP J.83 Annex B measurement application, fixed perpetual license
N6152A-3TP J.83 Annex B measurement application, transportable perpetual license
N6152A-MEU Minor enhancement update, fixed perpetual license
N6153A DVB-T/H/T2 Measurement Application
N6153A-2FP DVB-T/H Measurement application, fixed perpetual license
N6153A-2TP DVB-T/H measurement application, transportable perpetual license
N6153A-3FP DVB-T2 measurement application, fixed perpetual license
N6153A-3TP DVB-T2 measurement application, transportable perpetual license
N6155A ISDB-T/Tmm Measurement Application
N6155A-2FP ISDB-T Measurement Application,fixed perpetual license
N6155A-2TP ISDB-T measurement application , transportable perpetual license
N6155A-3FP ISDB-Tmm, Measurement Application, fixed perpetual license
N6155A-3TP ISDB-Tmm, measurement application, transportable perpetual license
N6156A DTMB (CTTB) Measurement Application
N6156A-2FP DTMB (CTTB) measurement application, fixed perpetual license
N6156A-2TP DTMB (CTTB) measurement application, transportable perpetual license
N6158A CMMB Measurement Application
N6158A-2FP CMMB Measurement Application,fixed perpetual license
N6158A-2TP CMMB measurement application, transportable perpetual license
N6171A MATLAB Software
N6171A-M01 MATLAB-Basic Package, individual license - node-locked
N6171A-M02 MATLAB-Standard Package, individual license - node-locked
N6171A-M03 MATLAB-Advanced Package, individual license - node-locked
N9051A Pulse Measurement Software
N9051A-2FP Pulse measurement software, fixed perpetual, license
N9051A-2TP Pulse measurement software, fixed, transportable perpetual license
N9051A-3FP Phase and frequency measurements, fixed perpetual license
N9051A-3TP Phase and Frequency Measurements, transportable perpetual license
N9051A-4FP Extended analysis and statistics, fixed perpetual license
N9051A-4TP Extended Analysis and Statistics, transportable perpetual license
N9061A Remote Language Compatibility Application
N9061A-1FP Remote language compatibility, 8566/68, fixed perpetual license
N9061A-2FP Remote language compatibility, 856xE/EC, fixed perpetual license
N9062A SCPI Language Compatibility
N9062A-2FP Remote language compatibility, R&S FSP, fixed perpetual license
N9063A Analog Demodulation Measurement Application
N9063A-2FP Analog Demodulation Measurement application, fixed perpetual license
N9063A-2TP Analog demodulation measurement application, transportable perpetual license
N9063A-3FP FM stereo measurement application, fixed perpetual license
N9063A-3TP FM stereo measurement applications, transportable perpetual liense
N9064A VXA Vector Signal Analysis Measurement Application
N9064A-1FP Vector signal analysis application, VXA, fixed perpetual license
N9064A-1TP Vector signal analysis application, VXA, transportable perpetual license
N9064A-2FP Flexible digital modulation analysis measurement application, fixed perpetual license
N9064A-2TP Flexible digital modulation analysis measurement application, fixed transportable license
N9064A-MEU Minor enhancement update
N9065B Sequence analyzer measurement application
N9068A Phase Noise Measurement Application
N9068A-2FP Phase Noise Measurement application, fixed perpetual license
N9068A-2TP Phase Noise measurement application, transportable perpetual license
N9068A-AFP Phase Noise Feature Enhancements, fixed perpetual license
N9068A-MEU Minor enhancement update
N9069A Noise Figure Measurement Application
N9069A-1FP Noise figure measurement application, fixed perpetual license
N9069A-1TP Noise figure measurement application, transportable perpetual license
N9069A-2FP Noise figure measurement application advanced features, fixed perpetual license
N9069A-2TP Noise figure measurement application advanced features, transportable perpetual license
N9069A-AFP Noise figure feature enhancements, fixed perpetual license
N9069A-MEU Minor enhancement update
N9071A GSM/EDGE/Evo Measurement Application
N9071A-2FP GSM/EDGE measurement application, fixed perpetual, license
N9071A-2TP GSM/EDGE measurement application, transportable perpetual, license
N9071A-3FP EDGE Evo measurement application, fixed perpetual license
N9071A-3TP EDGE Evo measurement application, transportable perpetual license
N9071A-AFP GSM / EDGE feature enhancements, fixed perpetual license
N9071A-MEU Minor enhancement update
N9071A-XFP Single acquisition combined GSM/EDGE measurement application, fixed perpetual license
N9071A-XTP GSM/EDGE combined measurement application, transportable perpetual, license
N9072A cdma2000 Measurement Application
N9072A-2FP cdma2000 measurement application, fixed perpetual license
N9072A-2TP cdma2000 measurement application, transportable perpetual license
N9073A W-CDMA/HSPA+ Measurement Application
N9073A-1FP W-CDMA Measurement application, fixed perpetual license
N9073A-1TP W-CDMA measurement application, fixed transportable perpetual license
N9073A-2FP HSDPA/HSUPA measurement application, fixed perpetual license
N9073A-2TP HSDPA/HSUPA measurement application, transportable perpetual license
N9073A-3FP HSPA+ Measurement Application, fixed perpetual license
N9073A-3TP HSPA+ measurement application, transportable perpetual license
N9073A-CFP W-CDMA feature enhancements, fixed perpetual license
N9073A-MEU Minor enhancement update
N9073A-XFP Single acquisition combined W-CDMA measurement application, fixed perpetual license
N9073A-XTP Single acquisition combined W-CDMA measurement application, transportable perpetual license
N9074A Fixed WiMAX Single Acquisition Combined Measurement Application
N9074A-XFP Single acquisition combined WiMAX measurement application, fixed perpetual, license
N9074A-XTP Single acquisition combined WiMAX measurement application, fixed perpetual license
N9075A Mobile WiMAX Measurement Application
N9075A-2FP Mobile WiMAX measurement application, fixed perpetual, license
N9075A-2TP Mobile WiMAX measurement application, transportable perpetual, license
N9076A 1xEV-DO Measurement Application
N9076A-1FP 1xEV-DO measurement application, fixed perpetual license
N9076A-1TP 1xEV-DO measurement application, transportable perpetual license
N9077A WLAN 802.11a/b/g/n/ac Measurement Application
N9077A-2FP WLAN 802.11a/b/g measurement application, fixed perpetual license
N9077A-2TP WLAN 802.11a/b/g measurement application, transportable perpetual license
N9077A-3FP WLAN 802.11n measurement application, fixed perpetual license
N9077A-3TP WLAN 802.11n, measurement application, transportable perpetual license
N9077A-4FP WLAN 802.11ac measurement application, fixed perpetual license
N9077A-4TP WLAN 802.11ac measurement application, transportable perpetual license
N9077A-5FP WLAN 802.11 list sequence measurement application, fixed perpetual license
N9077A-5TP WLAN 802.11 list sequence measurement application, transportable perpetual license
N9079A TD-SCDMA/HSPA Measurement Application
N9079A-1FP TD-SCDMA measurement application, fixed perpetual license
N9079A-1TP TD-SCDMA measurement application, transportable perpetual license
N9079A-2FP HSPA measurement application, fixed perpetual license
N9079A-2TP HSPA measurement application, transportable perpetual license
N9079A-MEU Minor enhancement update
N9080A LTE FDD Measurement Application
N9080A-1FP LTE FDD measurement application, fixed perpetual license
N9080A-1TP LTE FDD measurement application, transportable perpetual license
N9080B LTE/LTE-Advanced FDD measurement application
N9080B-1F1 LTE FDD measurement application, fixed timebased licenses, 1 month
N9080B-1FP LTE FDD measurement application, fixed perpetual license
N9080B-1TP LTE FDD measurement application, transportable perpetual license
N9080B-2F1 LTE-Advanced FDD measurement application, fixed timebased licenses, 1 month
N9080B-2FP LTE-Advanced FDD measurement application, fixed perpetual license
N9080B-2TP LTE-Advanced FDD measurement application, transportable perpetual license
N9081A Bluetooth Measurement Application
N9081A-2FP Bluetooth Measurement Application, fixed perpetual license
N9081A-2TP Bluetooth measurement application, transportable perpetual license
N9081A-MEU Minor enhancement update
N9082A LTE TDD Measurement Application
N9082A-1FP LTE TDD measurement application, fixed perpetual license
N9082A-1TP LTE TDD measurement application, transportable perpetual license
N9082B LTE/LTE-Advanced TDD measurement application
N9082B-1F1 LTE TDD measurement application, fixed timebased Licenses, 1 month
N9082B-1FP LTE TDD measurement application, fixed perpetual license
N9082B-1TP LTE TDD measurement application, transportable perpetual license
N9082B-2F1 LTE-Advanced TDD measurement application, fixed timebased licenses, 1 month
N9082B-2FP LTE-Advanced TDD measurement application, fixed perpetual license
N9083A Multi-Standard Radio (MSR) Measurement Application
N9083A-1FP Multi-Standard Radio, MSR, measurement application, fixed perpetual license
N9083A-1TP Multi-Standard Radio, MSR, measurement application, transportable perpetual license
